Human Exposure Measurements to Luminaries

Human Exposure Measurements to Luminaries

Human Exposure Measurements to Luminaries

The Van Der Hoofden test head allows to determine the human exposure to electromagnetic fields caused by luminaries in the frequency range 20kHz to 10MHz. The measurement is based on IEC 62493 Ed. 2.0: 2015-03.

Through different ways of coupling between luminaries and humans, a level of exposure of a person to electromagnetic fields can be derived. One part of the exposure is based on capacitive coupling between lighting equipment and person. This creates induced internal electric field that must be evaluated using an EMI receiver and a Van Der Hoofden test head.

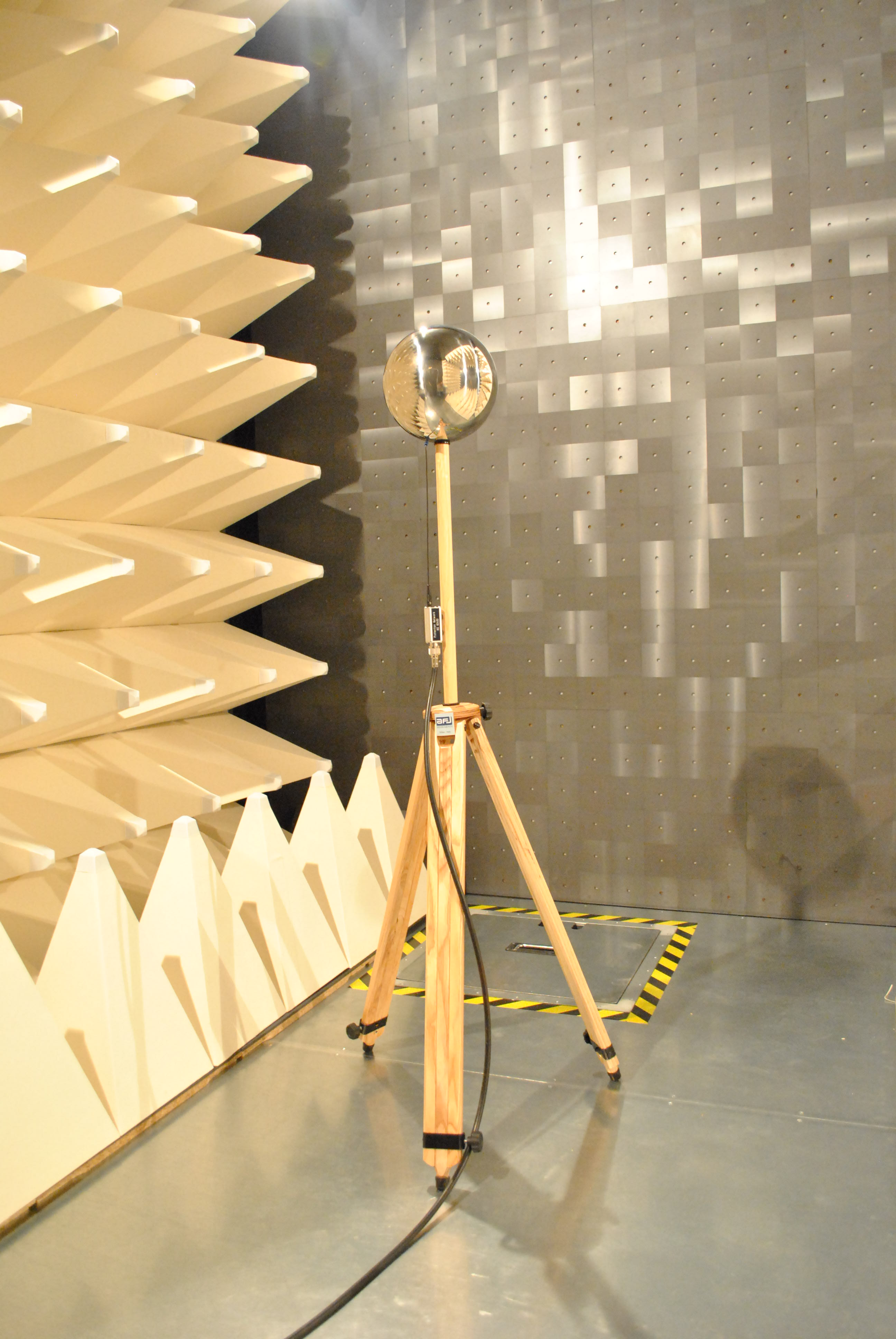

VDH 30 consists of electrically conductive sphere with 210mm diameter, connection line of 300mm length, protection network for the EMI receiver and wooden tripod.

The EMI receiver measures a voltage across 50Ohm. It must be connected to the N connector of the protection network. To determine compliance of a luminary to the standard the measured voltage must be converted into induced internal electric field. The measured, weighted and summarized induced internal electric field compliance factor F due to the external electric field into the frequency range from 20kHz to 10MHz shall not exceed the value of 1. A DUT is compliant if F does not exceed 1. These calculations can be done with the software provided with the equipment.
