FFT 3010 & 3030 EMI Receivers

FFT 3010 & 3030 EMI Receivers

Fully FFT digital EMI Receivers for measurement of conducted electromagnetic interference from 9kHz to 300MHz.

Compact designed and manufactured compliant to CISPR 16 International Standard, using FFT Scan Mode for fast measurements of conducted electromagnetic interference in accordance with requirements of EMI International, European and Product standards, pre-selectors and advanced software for EMC testing.

Based on a PC integrated architecture with WINDOWS 10 Embedded OS, FFT 3010 & 3030 EMI Receivers are ready to operate with advanced software for EMC testing, fitted with pre-selectors that allow excellent dynamic range and precise conducted emission measurements covering the frequency range from 9kHz to 300MHz. Remote control with an external PC is also possible.

  • Compact unit designed and manufactured compliant to CISPR 16-1-1;
  • FFT Scan Mode compliant to CISPR 16-3;
  • Peak, Quasi-Peak, CISPR Average, RMS and CISPR RMS Detectors;
  • Pre-selectors;
  • Tracking Generator;

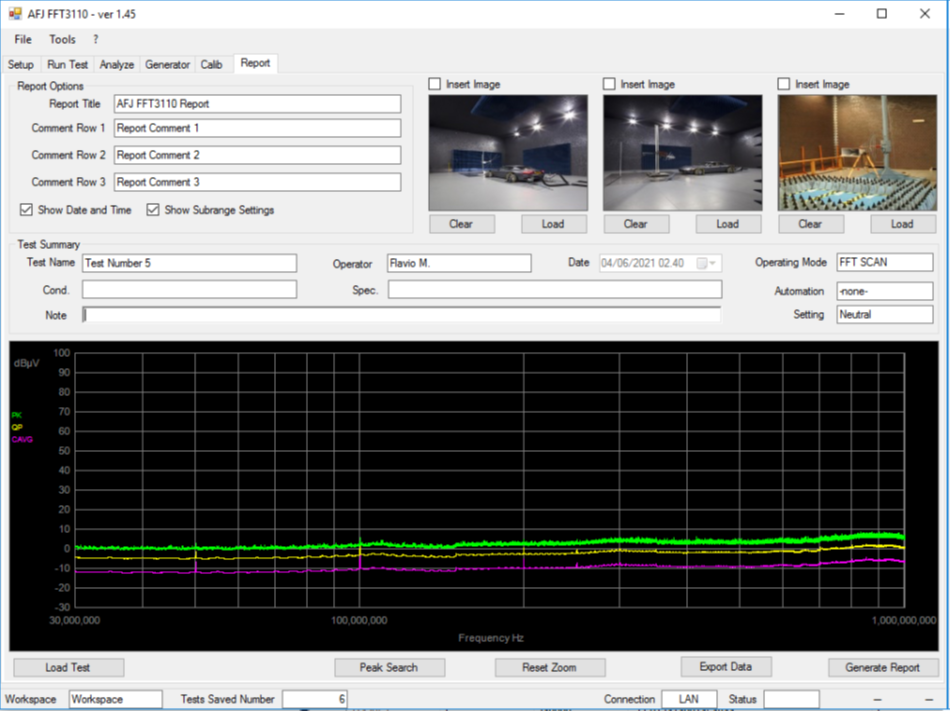

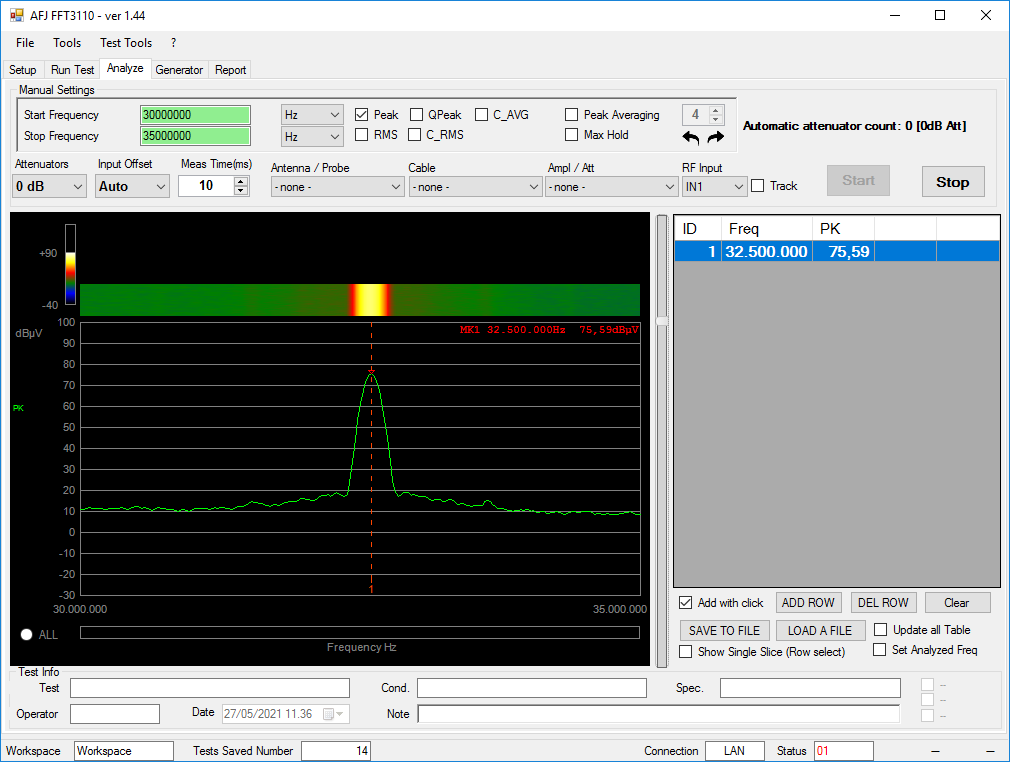

  • Advanced software for EMC testing;
  • 1Hz PRF CISPR 16-1-1 calibrated pulse weighting.

FFT 3030 EMI Receiver is ideal suited for measurement of electromagnetic interference in accordance with the requirements of CISPR 14-1 (household appliances industry), CISPR 15 (lighting equipment industry) and CISPR 25 (automotive industry) standards.

Further to conducted emission measurements from 9kHz to 30MHz with LISN, CISPR 14-1 standard requires radiated power emission measurements from 30MHz to 300MHz with absorbing clamp, CISPR-15 standard requires radiated emission measurements from 30MHz to 300MHz with CDN method, CISPR 25 standard requires conducted emission measurements from 9kHz to 108MHz.
